Tubular Fencing

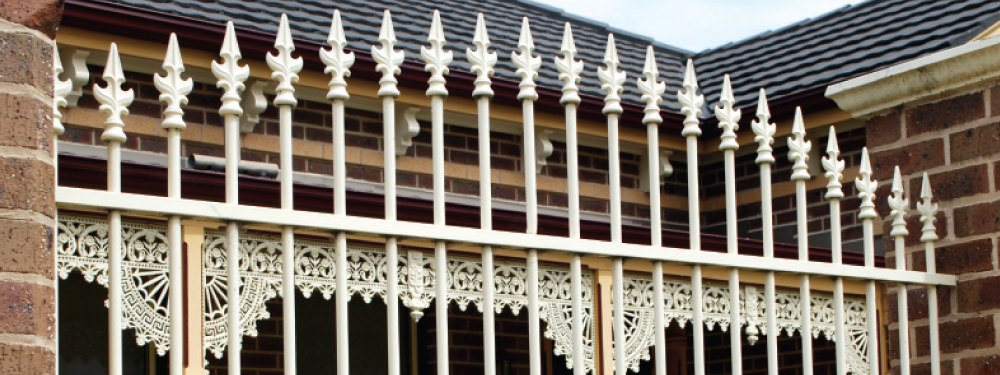

The style and elegance of heritage tubular fencing adds finesse to your home, a feature that will turn heads. With endless design options in our tubular fencing range, you are sure to find a quality fencing solution to suit your unique taste. Modern, traditional, security conscious – we’ve got you covered. Manufactured with Australian materials to ensure the quality of your new fence.

Styles

Benefits of Quality Fencing

  • Endless design and spear options to suit any style.
  • Standard Panel heights – 900mm, 1200mm, 1500mm or 1800m
  • Choose a  Standard Panel length – 2500mm, or we can manufacture to your specs
  • Gates to match – pedestrian, double entry, swing, sliding and automation available.
  • All of our tubular fencing can be manufactured to comply with building and current pool safety regulations.
  • Choice of “weld on front” or “punch through rail” available so you can have the attention to detail to create the look you want.
  • Huge range of premium quality powder coat colours

diagram

Single Gates

Standard single gates are 1000mm between posts, or they can be manufactured to fit your specific requirements. Please advise us if your gate is directly accessing a pool area and we will ensure that your gate kit will include a Pool safety latch and self closing spring hinges. Visit our accessories page if you would like to consider various other options including key lockable options!

Double Gates

Standard double gates are 3000mm between posts, or they can be manufactured to fit your specific requirements. They come with a D-Latch, standard gudgeon hinges and a pair of drop bolts. Visit our accessories page if you like to consider various other options including key lockable options!
D/L Latch Set

D/L Latch Set

standardhinges

1 set of Standard Hinges

D/L Latch Set

D/L Latch Set

2standardhinges

2 sets of Standard Hinges

2dropbolts

2 x Drop Bolts

Whether your main consideration is strength or aesthetics we have a large range of post options available. Available in either galvanised or premium powder coated finish.

  • Sizes available: 50mm x 50mm, 65mm x 35mm, 65mm x 65mm, 75mm x 75mm, 90mm x 90mm, 100mm x 100mm, 125mm x 125mm.
  • Standard lengths: 1200mm, 1500mm, 1800mm, 2100mm, 2400mm & 2700mm.
  • Custom lengths post lengths available in a full range of premium powder coat colours.

Plates

Posts on plates

For posts that are unable to go into the ground, we can supply posts with a welded base plate which can be dyna bolted to concrete or a paved area. Let us know which of these placement options best suits your requirements.

Welded Lugs

Welded Lugs

Can't dig your post into the ground or secure a post on a plate to a secure footing? We can manufacture posts with lugs welded prior to powder coating for ease of fixing to brick face.

Post Caps

If you find yourself in a sticky situation, speak to us about designing a post solution to solve your fencing challenge. We pride ourselves on being able to think outside the square and can custom design cranked or dog leg posts.

Steel Caps

Standard Cap

Available on all post sizes.

Ball Caps

Ball Cap

Available on 50mm, 65mm, 75mm & 100mm posts.

Decor Caps

Décor Cap

Available on 50mm & 75mm posts.

Windsor Caps

Windor Cap

Available on 50mm, 65mm & 75mm posts.

Crown Capitals

Crown Capital

Available on 100mm & 125mm posts.

Automation

Save the hassle of braving the wind and rain or extreme heat when entering or exiting your property by automating your driveway gates.

Jackal Fencing is proud to supply the Mhouse range of gate automation. Mhouse products are designed and made in Italy and are backed by a 2-year warranty. The drive units and accessories have been specifically designed for the DIY and are easy to install.

Fast and Simple

Fast and simple connections. Mhouse uses unique colour-coded cable connectors and labelled terminals in matching colours.

Connect up to seven pairs of obstacle sensors using only two cables and without having to worry about polarity.

Programming the motor is as simple as pressing two buttons for three seconds to program all functions. If you need to adjust a parameter you won’t need any tools, the main functions are set with the remote.

All of our gate designs can be manufactured to accommodate automation. We can supply you with an automation kit that has everything you will need to complete the job!

There are 3 options when it comes to powering your sliding gate motor.

When a 240V power point is available at the gate

3-Pin Plug

  • Uses a 240V power point at the gate.
  • 240V power must be fitted by an electrician
  • For busy gates

In most domestic situations the SL1 motor will be sufficient, but if your gate is on a slope, is larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

When there is no power available at the gate, but there is one within 50 meters

External Transformer

  • Connect to any power point.
  • Safe - Low voltage 24V cable is safe for children and animals.
  • No trench - Australian laws say 230V cable be laid in a 600mm deep trench. 24V (garden light) cable can sit above or just below the surface.
  • Economical - No need for an electrician to install a power point at the gate.
  • Easy DIY - Uses any power point up to 50m from the gate. The power point can be in the house, garage or garden.

In most domestic situations the SL1 motor will be sufficient, but if your gate is on a slope, is larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

Using Solar to power your gate motor

Solar power

  • The easiest Kit to install.
  • Ideal for long driveways
  • No electrician
  • No digging
  • Easy DIY
  • Not for use on busy gates

In most domestic situations the SL1 motor will be sufficient, but if your gate is on a slope, is larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

Available 3 Pin Plug Kits

Intro Options:

SL1 INTRO (for sliding gates up to 5m or 400kg)

SL10 INTRO(for sliding gates up to 7m or 550kg)

Safety Options:

SL1 SAFETY(for sliding gates up to 5m or 400kg)

SL10 SAFETY(for sliding gates up to 7m or 550kg)

Available External Transformer Kits

Intro XT Options:

SL1 INTRO – XT (for sliding gates up to 5m or 400kg)

SL10 INTRO – XT (for sliding gates up to 7m or 550kg)

Safety XT Options

SL1 SAFETY – XT (for sliding gates up to 5m or 400kg)

SL10 SAFETY – XT (for sliding gates up to 7m or 550kg)

Available Solar Kits

Intro plus Solar Kit

Safety plus Solar Kit

Worried about your automatic gate closing on pedestrians, car or animals etc?  Safety Kits include the same parts of an Intro Kit plus a pair of obstacle sensors.

For short cuts on programming remotes, installing wireless keypads & photocells, setting gate limits etc visit www.easygate.com.au/installers-area

Hit a snag regarding installation or motor operations? Give our tech support guys a call on 1800 241 733

Click here to view automation accessories sold separately.

We have 3 options when it comes to powering your swing gate motors.

When a 240V power point is available at the gate

3-Pin Plug

  • 240V power must be fitted by an electrician
  • For busy gates
  • A good option for new homes

In most domestic situations the WG2 motor will be sufficient, but if your gates are on a slope, larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

When there is no power available at the gate, but there is one within 50 meters

External Transformer

  • Extends the reach of a power point.
  • Safe - Low votage 24V cable is safe for children and animals.
  • No trench - Australian laws say 230V cable be laid in a 600mm deep trench. 24V (garden light) cable can sit above or just below the surface.
  • Economical - No need for an electrician to install a power point at the gate.
  • Easy DIY - Uses any power point up to 50m from the gate. The power point can be in the house, garage or garden.

In most domestic situations the WG2 motor will be sufficient, but if your gates are on a slope, larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

Using Solar to power your gate motor

Solar power

  • The easiest to install.
  • Ideal for long driveways
  • No electrician
  • No digging
  • Easy DIY

In most domestic situations the WG2 motor will be sufficient, but if your gate is on a slope, is larger than 5m or 400kg or is a solid design in a high wind area, you may require a larger motor. Give our friendly sales team a call to discuss your requirements.

Available 3 Pin Plug Kits

WG10 INTRO (for SINGLE swing gates up to 4.5m or 450kg)

WG2 INTRO(for DOUBLE - 2 leaves - gates up to 2m or 250kg per leaf)

WG20 INTRO(for DOUBLE - 2 leaves - gates up to 4.5m or 450kg per leaf)

WG10 SAFETY(for SINGLE swing gates up to 4.5m or 450kg

WG2 SAFETY(for DOUBLE - 2 leaves - gates up to 2m or 250kg per leaf)

WG20 SAFETY(for DOUBLE - 2 leaves - gates up to 4.5m or 450kg per leaf)

Available External Transformer Kits

WG10 INTRO - XT (for SINGLE swing gates up to 4.5m or 450kg)

WG2 INTRO – XT (for DOUBLE - 2 leaves - gates up to 2m or 250kg per leaf)

WG20 INTRO - XT(for DOUBLE - 2 leaves - gates up to 4.5m or 450kg per leaf)

WG10 SAFETY - XT (for SINGLE swing gates up to 4.5m or 450kg)

WG2 SAFETY – XT (for DOUBLE - 2 leaves - gates up to 2m or 250kg per leaf)

WG20 SAFETY - XT(for DOUBLE - 2 leaves - gates up to 4.5m or 450kg per leaf)

Available Solar Kits

Intro plus Solar Kit (For Single Gates)

Intro plus Solar Kit (For Double Gates)

Safety plus Solar Kit (For Single Gates)

Safety plus Solar Kit (For Double Gates)

Worried about your automatic gate closing on pedestrians, car or animals etc?  Safety Kits include the same parts of an Intro Kit plus a pair of obstacle sensors.

For short cuts on programming remotes, installing wireless keypads & photocells, setting gate limits etc visit www.easygate.com.au/installers-area

Hit a snag regarding installation or motor operations? Give our tech support guys a call on 1800 241 733

Click here to view automation accessories sold separately.

Sliding Gates

All of our fencing designs can be manufactured for sliding gate applications.

Manufacturing Specifications
Fence Design Full Range
Bottom Rail 100mm x 50mm RHS with slots cut out for wheels
Guide Rail 30mm x 30mm Angle Iron
End Styles 50mm x 50mm SHS
Sliding gates are a great option when you have limited space in your yard to allow for swing gates. Our entire range of fencing styles can be manufactured for sliding gate applications, can be easily automated and are a practical whilst securing your property. Sliding gates can be manufactured as small as 1000mm between posts to as large as 7500mm and up to 2100mm high. Download our helpful guide below to assist you in the measuring process and our Sliding Gate Installation Guide to assist with installation.
guidedownload

For handy DIY tips download our helpful Tubular Fencing Installation guide to get you started on planning and installing your next fencing project.

For ease in planning your material requirements, download and complete our Site Plan. Have a sloping block or retaining walls you need to fence? No problem! You can choose to ‘step’, ‘taper’ or “rake” (on a fall) your fence. Download our helpful printable calculation sheets to make the measurement process easy.

Too busy to "do it yourself"? No problems! Contact our friendly sales team who can provide the details of an experienced fencing contractor in your area. One of our preferred fencing contractors will be happy to visit you, run through our design options, the unique specifications of your site and provide a free no obligation quote. We have built a strong relationship with our preferred contractors and feel confident that they will be able to provide you with the right advice.

If you would like to arrange a Quote for Installation of any of our products, call us today, or fill out our free Quote request form.
